Description
0.167" ID 4MM ALUMINUM CARBON
• High-strength carbon fiber bonded to a 7075 alloy core
• Straightness: ± .001”
• Weight tolerance: ± 0.5 grains in precise weight codes
• Barreled profile
• Designed for recurve bow
• Components sold separately
• Made In USA
|
Spine
|

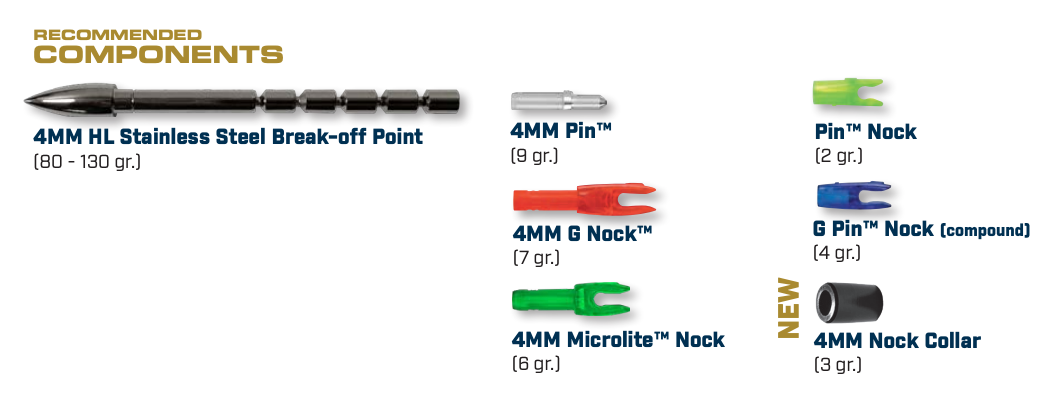

Shaft Weight GPI | Shaft O.D. (inches) | Stock Length (inches) | Max Trim (inches) | 4MM HL Point Fitment | 4MM Point Fitment | 4mm Pin Fitment | 4mm Nock Collar |
| 370 | 7.9 | 0.23 | *32.62 | 4 | #1 | #1 | #1 | #1 |
| 400 | 7.5 | 0.23 | *32.62 | 4 | #1 | #1 | #1 | #1 |
| 430 | 7 | 0.224 | *32.62 | 5.5 | #1 | #1 | #1 | #1 |
| 470 | 6.8 | 0.223 | *32.62 | 6.5 | #1 | #1 | #1 | #1 |
| 520 | 6.7 | 0.216 | 31.62 | 4.5 | #1 | #1 | #1 | #1 |
| 570 | 6.3 | 0.216 | 31.62 | 10 | #1 | #1 | #1 | #1 |
| 620 | 6.1 | 0.214 | 30.62 | No Limit | #1 | #1 | #1 | #1 |
| 670 | 5.9 | 0.212 | 30.62 | No Limit | #1 | #1 | #1 | #1 |
| 720 | 6.4 | 0.215 | 29.62 | 6 | #1 | #1 | #1 | #1 |
| 780 | 6 | 0.216 | 29.62 | No Limit | #1 | #1 | #1 | #1 |
| 850 | 5.7 | 0.213 | 28.62 | No Limit | #1 | #1 | #1 | #1 |
| 920 | 5.8 | 0.213 | 28.62 | 9.5 | #1 | #1 | #1 | #1 |
| 1000 | 5.7 | 0.213 | 28.62 | No Limit | #1 | #1 | #1 | #1 |
| 1100 | 5.1 | 0.205 | 28.62 | No Limit | #1 | #1 | #1 | #1 |
| 1250 | 5.1 | 0.205 | 28.62 | No Limit | #1 | #1 | #1 | #1 |

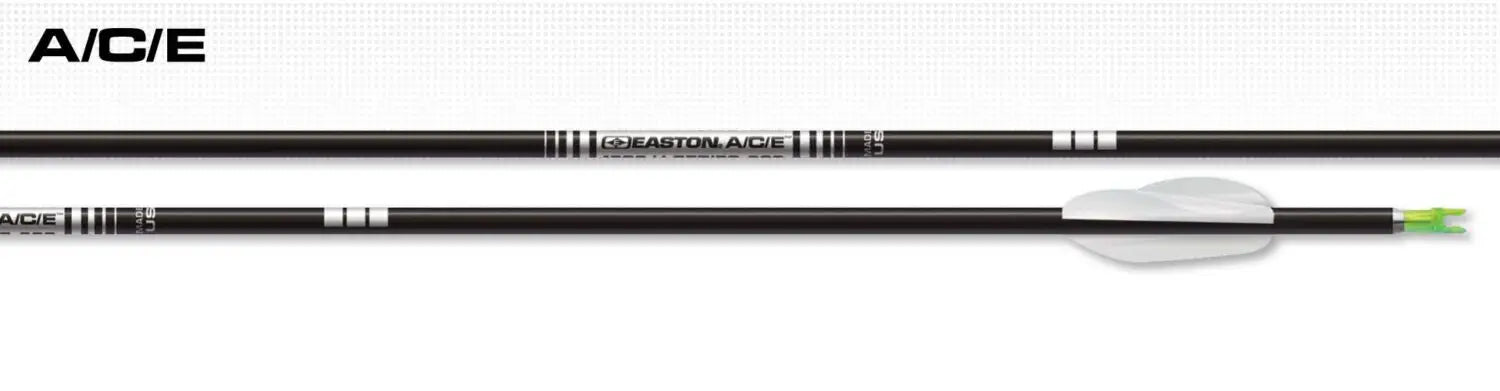

ABOUT THE PRODUCT
A/C/E is the arrow which started a revolution that continues to this day. Light, strong and proven across the globe.
SPECIFICATIONS
- High-strength carbon fiber bonded to a 7075 alloy core
- Polished black carbon finish
- Straightness: ± .0015”
- Weight tolerance: ± 0.5 grains
- Components—sold separately
- Barreled design
- MADE IN USA
- *6 pack boxes come in 32″ stock length only.
1. Due to the barrel design of the A/C/E, the weight is an average grains-per-inch of a 29” shaft. Shaft weight is slightly heavier in the larger diameter center and lighter toward the tapered ends. One inch of shaft cut from the point end typically weighs 5-6 grains
2. Available as a special order only. Replaced with A/C/C -00 sizes.
3. Nominal O.D. at mid-point of shaft. Ends are smaller.
4. Recommended that no more than these lengths be cut from the front of the shaft.
