$179.99
Size
Spine @ 28″ Span (deflection in inches) Shaft Weight GPI Shaft O.D. (inches) Minimum Stock Length (inches) 4mm Bushing Weight (grains) 6.5mm Bushing Weight (grains) Bullet Point Weight (grains) NIBB Point Weight (grains) Insert Weight (grains) Screw-In Point Size
2613 0.272 11.5 0.414 34.75 N/A 17 150 N/A 58 08-Mar
2512 0.329 10.3 0.398 34.5 N/A 15 100 108 52 11/32
2511 0.348 9.6 0.396 34.5
2413 0.372 10.5 0.372 34 N/A 12 100 110 40 11/32
2214 0.431 10.4 0.318 33.38 N/A 9 100 103 N/A N/A
2213 0.464 9.9 0.344 33.5 N/A 9 90 88 30 11/32
2212 0.505 8.8 0.345 32.5
2114 0.511 9.9 0.328 32.5 N/A 7 90 78 25 16-May
2014 0.584 9.6 0.314 31.63 N/A 5 90 71 N/A N/A
1914 0.663 9.3 0.3 30.88 9 N/A 90 64 N/A N/A
1814 0.804 8.6 0.284 29.88 8 N/A 65 60 N/A N/A
1714 0.967 8.1 0.268 29.38 7 N/A 60 56 N/A N/A
1614 1.157 7.7 0.251 28.25 5 N/A 50 51 N/A N/A
1514 1.384 6.8 0.244 26.5 5 N/A 50 61 N/A N/A

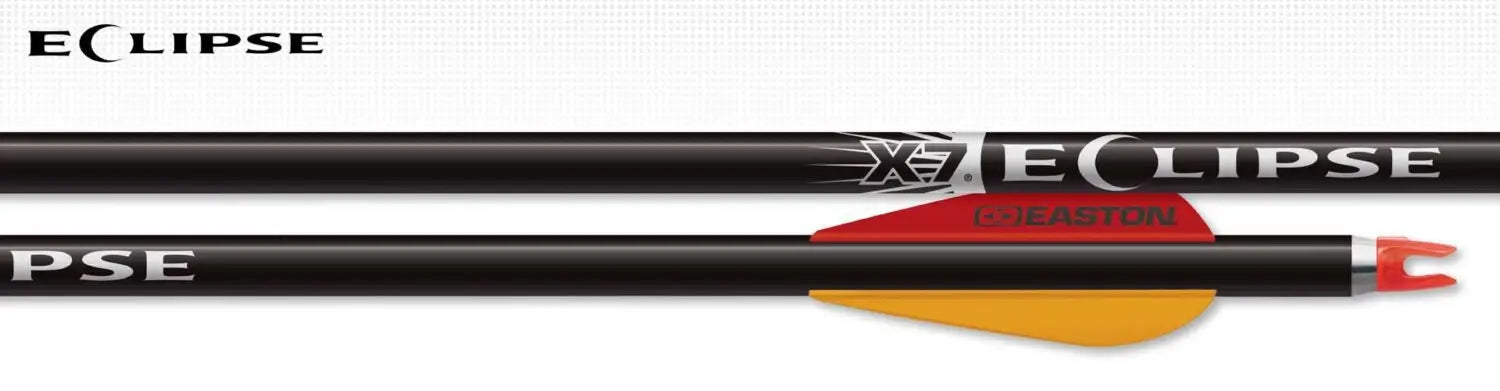

X7 Eclipse arrow shaft is the World Standard for precision and a perfect tune. Precise spine, consistent weight and incredible straightness.

SPECIFICATIONS
  • 7178-T9 aerospace alloy
  • Hard-anodized black finish
  • Straightness: ± .001”
  • Weight tolerance: ± 0.75%
  • Strength (psi): 105,000
  • G-UNI/Super UNI bushing installed

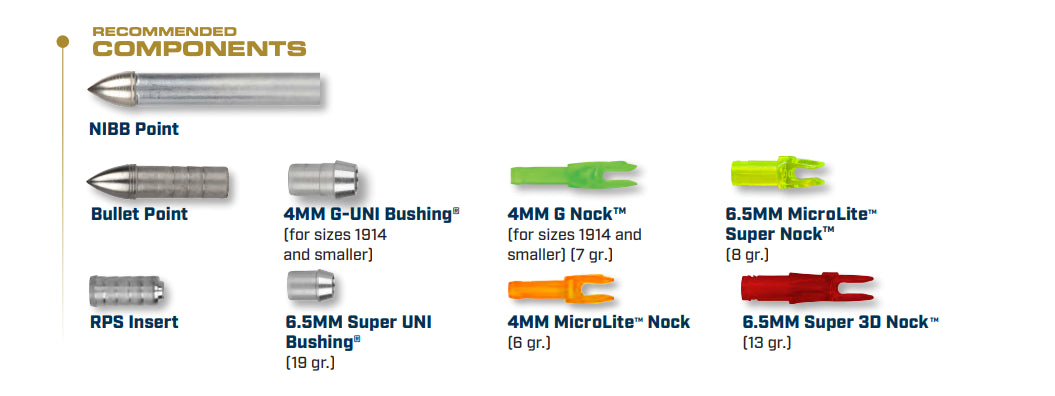

  • Nocks and points sold separately
  • Sizes 1514 through 2214 are World Archery compliant
  • MADE IN USA
  • *6 pack boxes come in 32″ stock length only



Availability: 10 In Stock
