Description

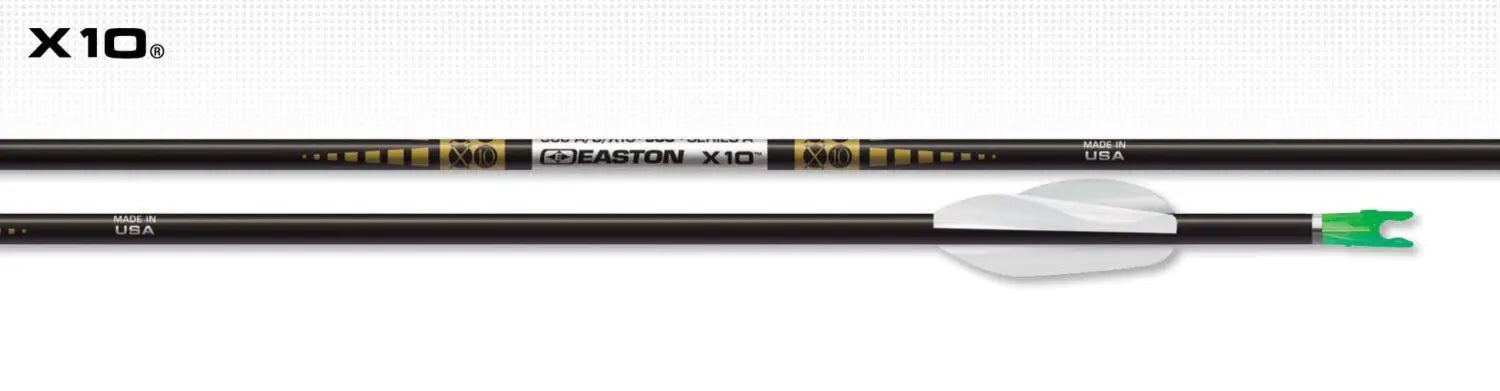

0.128" ID 3.2MM ALUMINUM CARBON
• High-strength carbon fiber bonded to a 7075 alloy core
• Straightness: ± .001"
• Weight tolerance: ± 0.5 grains in precise weight codes
• Barreled profile
• Designed for recurve bows

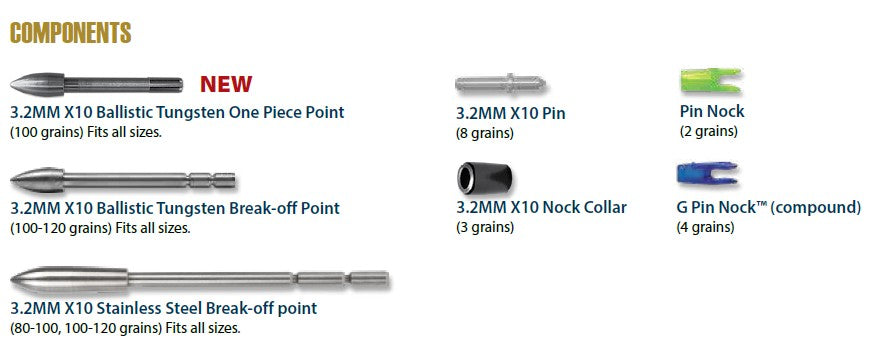

• Components sold separately
• Made In USA
|
Spine
|
Shaft Weight GPI | Shaft O.D. (inches) | Stock Length (inches) | Front Max Trim (inches) | X10 Pin Fitment | X10 Point Fitment | X10 Nock Collar |
| 325 | 9.2 | 0.221 | *34.25 | 6 | #1 | All | #1 |
| 350 | 8.8 | 0.218 | *34 | 6 | #1 | All | #1 |
| 380 | 8.9 | 0.215 | *33.75 | 6.5 | #1 | All | #1 |
| 410 | 8.5 | 0.212 | *33.75 | 5.5 | #1 | All | #1 |
| 450 | 8.1 | 0.209 | *33.5 | 5.5 | #1 | All | #1 |
| 500 | 7.8 | 0.206 | 32 | 4 | #1 | All | #1 |
| 550 | 7.5 | 0.203 | 31 | 3.5 | #1 | All | #1 |
| 600 | 7 | 0.2 | 30 | 3.5 | #1 | All | #1 |
| 650 | 6.8 | 0.197 | 29 | 3.5 | #1 | All | #1 |
| 700 | 6.7 | 0.194 | 29 | 3.5 | #1 | All | #1 |
| 750 | 6.4 | 0.191 | 29 | 3.5 | #1 | All | #1 |
| 830 | 6.2 | 0.188 | 28.5 | No Limit | #1 | All | #1 |
| 900 | 5.8 | 0.185 | 28 | No Limit | #1 | All | #1 |
| 1000 | 5.3 | 0.182 | 28 | No Limit | #1 | All | #1 |
