Description

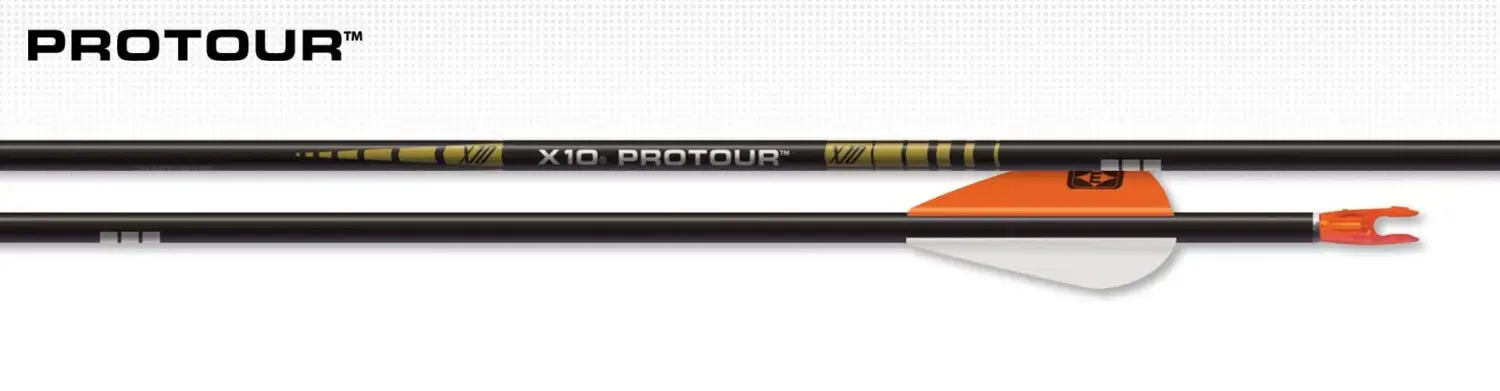

0.128" ID 3.2MM ALUMINUM CARBON
• High-strength carbon fiber bonded to a 7075 alloy core
• Straightness: ± .001"
• Weight tolerance: ± 0.5 grains in precise weight codes
• Tapered profile
• Designed for compound bows
• Components sold separately
• Made In USA
| Spine |
Shaft Weight
GPI |
Shaft O.D. (inches) |
Stock Length
(inches) |
Front Max Trim
(inches) |

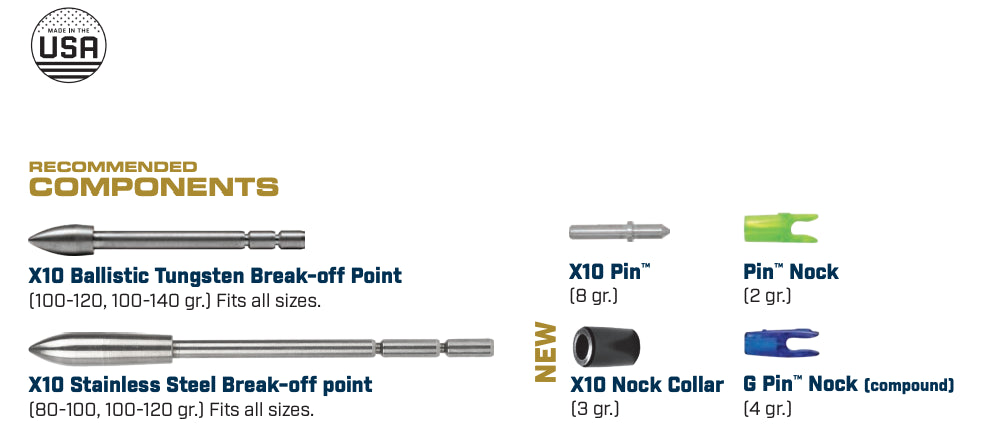

X10 Pin Adapter
Fitment |
X10 Point
Fitment |
X10
Nock Collar |
|---|---|---|---|---|---|---|---|
| 340 | 8.8 | .213 | *34 | 7.0 | #2 | All | #5 |
| 380 | 8.4 | .207 | *34 | 7.0 | #2 | All | #5 |
| 420 | 8.0 | .202 | *33.75 | 6.5 | #2 | All | #4 |
| 470 | 7.6 | .198 | *33.75 | 6.0 | #2 | All | #4 |
| 520 | 7.3 | .194 | 32 | 5.5 | #2 | All | #3 |
| 570 | 6.9 | .191 | 31 | 5.0 | #2 | All | #3 |
| 620 | 6.7 | .188 | 30 | 4.5 | #2 | All | #3 |
| 670 | 6.5 | .186 | 29.75 | 4.0 | #2 | All | #2 |
| 720 | 6.2 | .183 | 29.75 | No Limit | #2 | All | #2 |
| 770 | 6.0 | .181 | 29 | No Limit | #2 | All | #2 |
1 Due to the taper design of the X10 Protour, the grain weight-per-inch shown is an average weight-per-inch of a 29” shaft.
Shaft weight is slightly heavier toward the larger-diameter nock end and lighter toward the tapered front end. One inch
of shaft cut from the point end typically weighs 6-7 grains.
2 Nominal O.D. at mid-point of shaft. Front end is smaller.
3 Recommended that no more than these lengths be cut from the front of the shaft.
