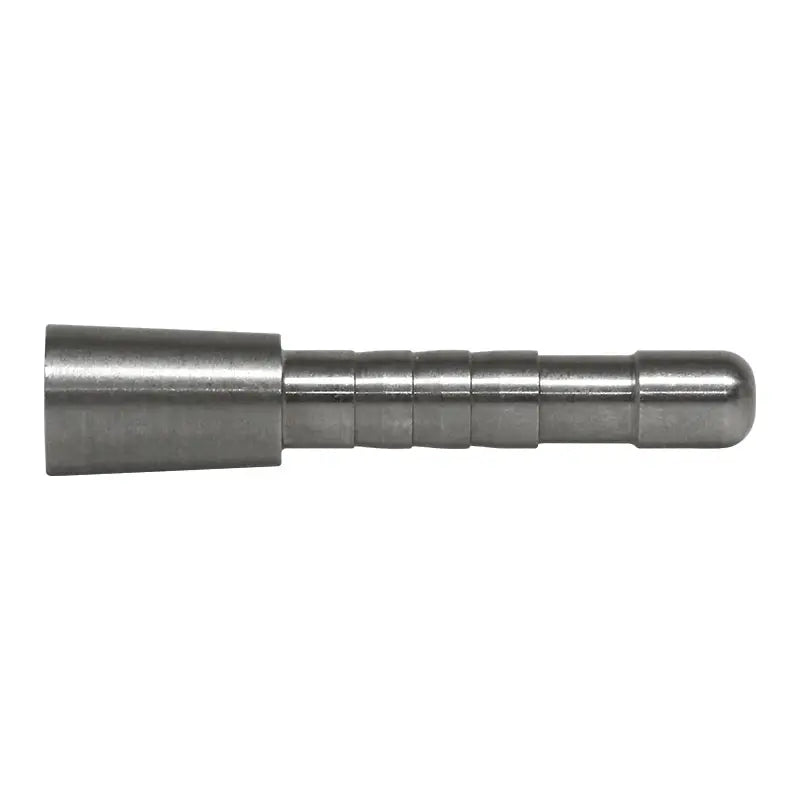

EASTON 5MM HALFOUT 50 GR STEEL 1PC INSERTS

$29.99

Easton’s 5MM Half-Out Insert is a convenient insert option compatible with any Easton 5mm arrow shaft. Available in Aluminum or Stainless Steel configurations, this half-out delivers improved FOC versus conventional inserts

Refer to the following charts for the best fitting components for your setup.

5MM FMJ Chart

Size	Shaft Weight (GPI)	Spine @ 28" Span (Deflection in inches)	Stock Length (Inches)	Field Point (O.D. Inches)	Match Grade HIT Collar (Size)	O.D. (Inches)	Half Out (Size)


500	9.1	0.500	31	17/64	1	0.256	#1
400	10.2	0.400	31.5	17/64	2	0.263	#2
340	11.3	0.340	32	9/32	3	0.269	#2
300	12.0	0.300	32.5	9/32	4	0.273	#2
250	11.5	0.250	33	9/32	3	0.273	#2
250 (Dangerous Game)	17.7	0.250	32.5	19/64	N/A	0.290	N/A

5MM Axis Chart

Size	Shaft Weight (GPI)	Spine @ 28" Span (deflection in inches)	Stock Length (Inches)	Field Point (O.D. Inches)	Match Grade HIT Collar	Broadhead Adapter Ring Size (5 grains)	O.D. (inches)	5mm Half Out (size)


600	7.2	0.600	30.5	17/64	#1	BAR 3	0.253	#1
500	8.1	0.500	31	17/64	#1	BAR 3	0.258	#1
400	9.0	0.400	31.5	17/64	#2	BAR 4	0.264	#2
340	9.5	0.340	32	9/32	#3	BAR 5	0.267	#2
300*	10.7	0.300	32.5*	9/32	#4	BAR 6	0.275	#2
260*	11.5	0.260	34*	9/32	#5	BAR 6	0.280	#2
200*	12	0.200	34*	9/32	#6	BAR 6	0.286	#2

5MM Half-Out Insert

Easton’s 5MM Half-Out Insert is a convenient insert option compatible with any Easton 5mm arrow shaft. Available in Stainless Steel configurations, this half-out delivers improved FOC versus conventional inserts.

Stainless Steel Half-Out Specifications:
